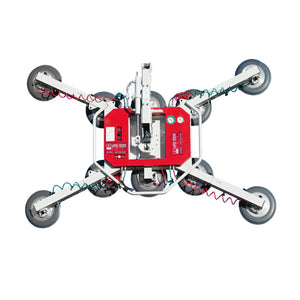

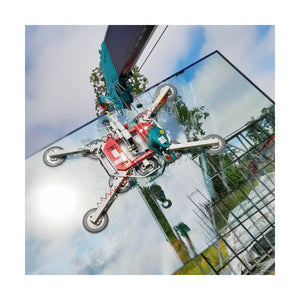

UPG1000 suction cup group

With the UPG1000 suction cup group , loads of up to 1000 kg can be lifted and moved effortlessly . Thanks to the modular design, the suction cups can be optimally adapted to the respective situation without tools. Thanks to the extension arms, even larger items can be sucked up more conveniently. The integrated support arm can be removed if necessary.

Special attention was paid to the development of the suction cups, which have an enormously high adhesion and are characterized by a long service life. During the suction process, it is important that the object to be lifted has a smooth, flat and air-tight surface. The suction process takes place directly on the unit. Optionally, the operator can control the suction process via a radio remote control. The suction cup independently monitors the vacuum pressure and, if necessary, pumps again by itself. The user is also warned acoustically in the event of an impending loss of vacuum. Power is supplied independently of the mains via the integrated battery.

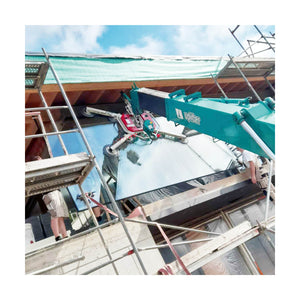

As a rule, the suction cup has an operating time of approx. 8 hours . The suction unit can be rotated 360 degrees and tilted 90 degrees if necessary and can be used on almost any construction site.

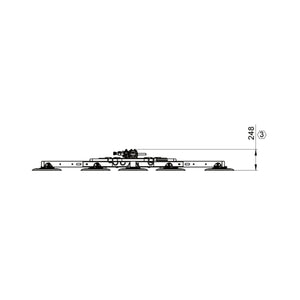

Technical Features:

• Load capacity:

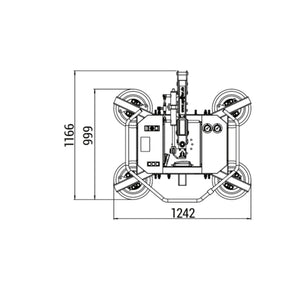

  4 suction plates = 400 kg

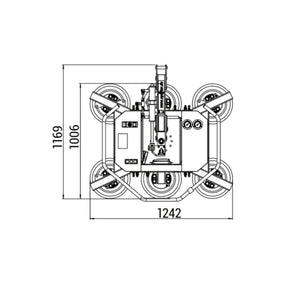

  6 suckers = 600 kg

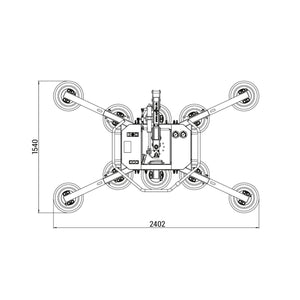

  8 suction plates = 800 kg
  10 suction plates = 1,000 kg
• Silicone-free suction plates (no sign)
• Suction plates with spring piston and joint
• Manual rotation 360° with grid every 90°
• Manual rotation without raster
• Continuous rotation from 0° to 90° by lowering the cylinder
• Removable support arm - min. unit depth 150 mm
• Two independent vacuum circuits with double safety
• Integrated measuring devices for monitoring
• Acoustic signalling devices
• Individual suction cup arrangement without tools
• 12V battery power supply independent from the mains
• Extension arms for large surface elements
• Meets the requirements of DIN EN 13155

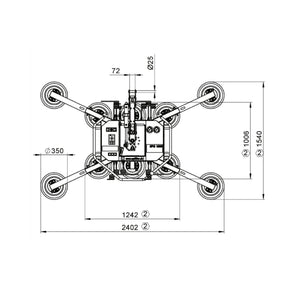

• Suction cup diameter 350 mm
• Eyelet diameter 400 mm
• Remote control for suction/release
• Net weight approx. 126kg
• Allowable temperature range from 0° to 40°
